1. 개요
- MongDB
✓ MongoDB는 크로스 플랫폼 도큐먼트 지향 데이터베이스 시스템이다.
✓ NoSQL 데이터베이스로 분류되는 MongoDB는 JSON과 같은 동적 스키마형 도큐먼트들을 선호한다.
- MongoDB Replica sets vs Sharded cluster
✓ https://severalnines.com/database-blog/turning-mongodb-replica-set-sharded-cluster

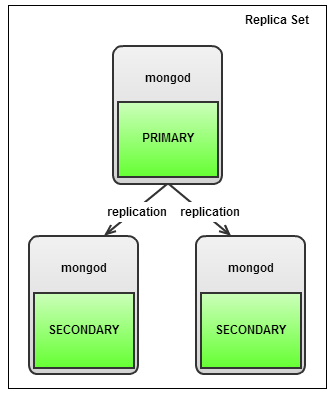

a. Replica sets
✓ Replica Sets are a great way to replicate MongoDB data across multiple servers and have the database automatically failover in case of server failure.

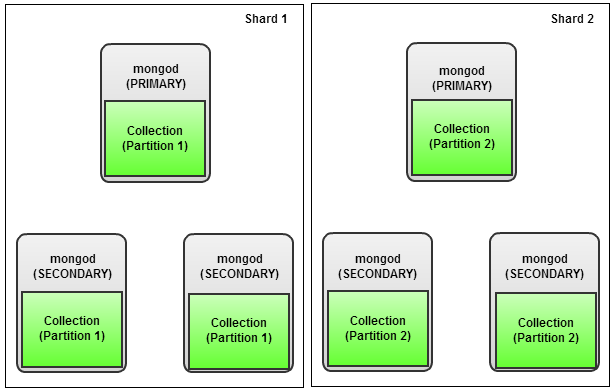

b. Sharded
✓ Sharding is a way to split data across multiple servers. In a MongoDB Sharded Cluster, the database will handle distribution of the data and dynamically load-balance queries.

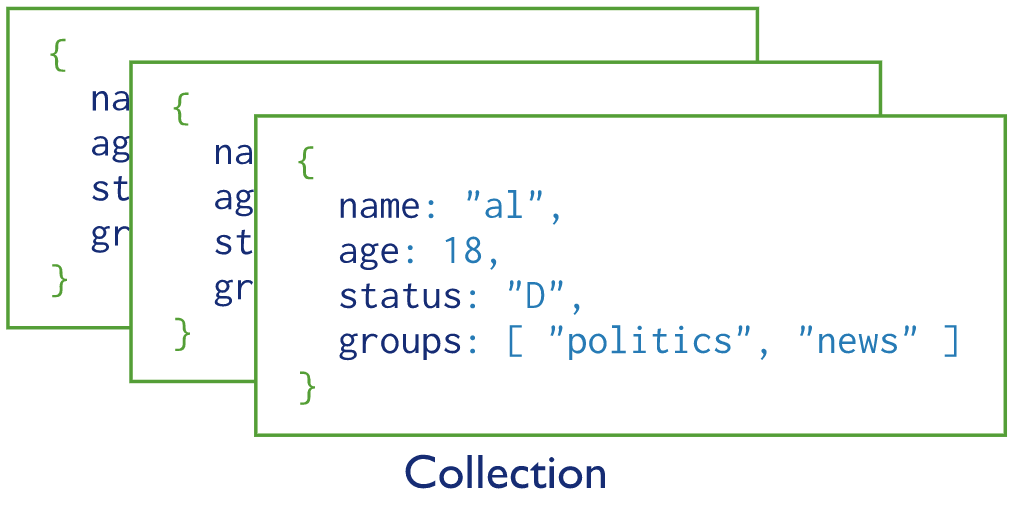

MongoDB stores documents in collections. Collections are analogous to tables in relational databases.

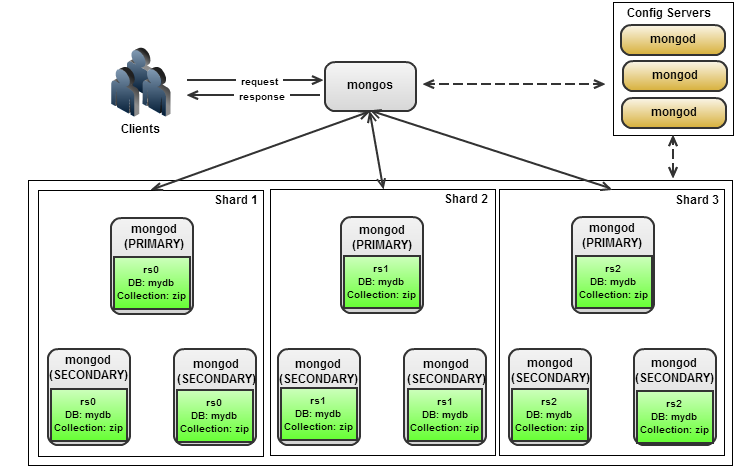

✓ Config servers store the meta data for the sharded cluster.
✓ Routers(mongos) are the processes that clients connect to, and queries are then routed to the appropriate shard.
- MongoDB Sharded helm chart by Bitnami
This chart bootstraps a deployment on a cluster using the package manager.
2. 환경
- bitnami/mongodb-sharded 3.9.14
- MongoDB 4.4.10
- Helm 3.3.1
- Kubernetes 1.20.11, 1.16.15
3. 구성
- Helm chart repository 추가 및 MongoDB sharded 검색
$ helm repo add bitnami https://charts.bitnami.com/bitnami
"bitnami" has been added to your repositories
$ helm repo list
NAME URL
bitnami https://charts.bitnami.com/bitnami
…
$ helm repo update
…
...Successfully got an update from the "bitnami" chart repository
...Successfully got an update from the "nvidia" chart repository
Update Complete. ⎈Happy Helming!⎈
$ helm search repo mongodb
NAME CHART VERSION APP VERSION DESCRIPTION
bitnami/mongodb 10.29.0 4.4.10 NoSQL document-oriented database that stores JS...
bitnami/mongodb-sharded 3.9.14 4.4.10 NoSQL document-oriented database that stores JS...
prometheus-community/prometheus-mongodb-exporter 2.8.1 v0.10.0 A Prometheus exporter for MongoDB metrics
stable/mongodb 7.8.10 4.2.4 DEPRECATED NoSQL document-oriented database tha...
stable/mongodb-replicaset 3.17.2 3.6 DEPRECATED - NoSQL document-oriented database t...
stable/prometheus-mongodb-exporter 2.8.1 v0.10.0 DEPRECATED A Prometheus exporter for MongoDB me...
bitnami/mean 6.1.2 4.6.2 DEPRECATED MEAN is a free and open-source JavaS...
stable/unifi 0.10.2 5.12.35 DEPRECATED - Ubiquiti Network's Unifi Controller$
- helm chart용 parametes yaml 파일 생성 및 변경
https://artifacthub.io/packages/helm/bitnami/mongodb-sharded#parameters
mongodbRootPassword와 replicaSetKey 값 설정을 권고한다. 미 설정시 랜덤하게 생성되며, 향후 'helm upgrade' 명령어로 설정 변경 시 자동으로 변경되는 문제가 발생된다.
$ helm inspect values bitnami/mongodb-sharded --version 3.9.14 > mongodb-sharded_3.9.14_yoosung-jeon.values
$ vi mongodb-sharded_3.9.14_yoosung-jeon.valuesmongodb-sharded_3.9.14_yoosung-jeon.values
...
079: ## @param mongodbRootPassword MongoDB® root password
080: ## If set to null it will be randomly generated
085: mongodbRootPassword: "root1234"
086: ## @param replicaSetKey Replica Set key (shared for shards and config servers)
090: replicaSetKey: "repl1234"
...
099: ## @param shards Number of shards to be created
102: shards: 3
...
327: configsvr:
328: ## @param configsvr.replicas Number of nodes in the replica set (the first node will be primary)
330: replicas: 2
...
534: mongos:
535: ## @param mongos.replicas Number of replicas
537: replicas: 2
...
747: shardsvr:
748: ## Properties for data nodes (primary and secondary)
750: dataNode:
751: ## @param shardsvr.dataNode.replicas Number of nodes in each shard replica set (the first node will be primary)
753: replicas: 2
...
$
- MongoDB sharded 설치
$ helm install ysjeon-mongodb bitnami/mongodb-sharded --namespace yoosung-jeon --values mongodb-sharded_3.9.14_yoosung-jeon.values
NAME: ysjeon-mongodb
LAST DEPLOYED: Wed Nov 3 11:21:50 2021
NAMESPACE: yoosung-jeon
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
CHART NAME: mongodb-sharded
CHART VERSION: 3.9.14
APP VERSION: 4.4.10
** Please be patient while the chart is being deployed **
The MongoDB® Sharded cluster can be accessed via the Mongos instances in port 27017 on the following DNS name from within your cluster:
ysjeon-mongodb-mongodb-sharded.yoosung-jeon.svc.cluster.local
To get the root password run:
export MONGODB_ROOT_PASSWORD=$(kubectl get secret --namespace yoosung-jeon ysjeon-mongodb-mongodb-sharded -o jsonpath="{.data.mongodb-root-password}" | base64 --decode)
To connect to your database run the following command:
kubectl run --namespace yoosung-jeon ysjeon-mongodb-mongodb-sharded-client --rm --tty -i --restart='Never' --image docker.io/bitnami/mongodb-sharded:4.4.10-debian-10-r15 --command -- mongo admin --host ysjeon-mongodb-mongodb-sharded
To connect to your database from outside the cluster execute the following commands:
kubectl port-forward --namespace yoosung-jeon svc/ysjeon-mongodb-mongodb-sharded 27017:27017 &
mongo --host 127.0.0.1 --authenticationDatabase admin -p $MONGODB_ROOT_PASSWORD$
$ helm list -n yoosung-jeon | egrep 'NAME|mongodb'
NAME NAMESPACE REVISION UPDATED STATUS CHART APP VERSION
ysjeon-mongodb yoosung-jeon 1 2021-11-03 11:23:45.247177 +0900 KST deployed mongodb-sharded-3.9.14 4.4.10
$
- MongoDB service type 변경
Kubernetes 외부에서 접속할 수 있도록 MongoDB Service type을 NodePort로 변경한다.
할당된 NodePort는 30997이며, IP주소는 Kubernetes Master/Worker node IP를 사용하면 된다.
$ kubectl patch service ysjeon-mongodb-mongodb-sharded -n yoosung-jeon -p '{ "spec": { "type": "NodePort" } }'
service/ysjeon-mongodb-mongodb-sharded patched
$ kubectl get svc -n yoosung-jeon | egrep 'NAME|mongodb'
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
ysjeon-mongodb-mongodb-sharded NodePort 10.106.64.229 <none> 27017:30997/TCP 123m
ysjeon-mongodb-mongodb-sharded-headless ClusterIP None <none> 27017/TCP 123m
$
- MongoDB 설치 결과 확인
$ k get pod -l app.kubernetes.io/name=mongodb-sharded -n yoosung-jeon
NAME READY STATUS RESTARTS AGE
ysjeon-mongodb-mongodb-sharded-configsvr-0 1/1 Running 0 42m
ysjeon-mongodb-mongodb-sharded-configsvr-1 1/1 Running 0 41m
ysjeon-mongodb-mongodb-sharded-mongos-54f4d86d4-6vwcx 1/1 Running 0 42m
ysjeon-mongodb-mongodb-sharded-mongos-54f4d86d4-xbsbg 1/1 Running 0 42m
ysjeon-mongodb-mongodb-sharded-shard0-data-0 1/1 Running 0 42m
ysjeon-mongodb-mongodb-sharded-shard0-data-1 1/1 Running 0 41m
ysjeon-mongodb-mongodb-sharded-shard1-data-0 1/1 Running 0 42m
ysjeon-mongodb-mongodb-sharded-shard1-data-1 1/1 Running 0 41m
ysjeon-mongodb-mongodb-sharded-shard2-data-0 1/1 Running 0 42m
ysjeon-mongodb-mongodb-sharded-shard2-data-1 1/1 Running 0 40m
$ k get pvc -n yoosung-jeon | egrep 'NAME|mongodb'
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE
datadir-ysjeon-mongodb-mongodb-sharded-configsvr-0 Bound pvc-1c251d54-11f5-4b6a-adeb-7e7cbfc54cef 8Gi RWO nfs-sc-iap 43m
datadir-ysjeon-mongodb-mongodb-sharded-configsvr-1 Bound pvc-2f3adeab-b7aa-4864-a46e-0eff88930644 8Gi RWO nfs-sc-iap 42m
datadir-ysjeon-mongodb-mongodb-sharded-shard0-data-0 Bound pvc-366395bb-e303-4b3c-9588-92252075a38b 8Gi RWO nfs-sc-iap 43m
datadir-ysjeon-mongodb-mongodb-sharded-shard0-data-1 Bound pvc-983a146d-9708-4300-97c0-f2804dc52063 8Gi RWO nfs-sc-iap 41m
datadir-ysjeon-mongodb-mongodb-sharded-shard1-data-0 Bound pvc-dced0577-697e-4310-a9e6-3e2ab8a61149 8Gi RWO nfs-sc-iap 43m
datadir-ysjeon-mongodb-mongodb-sharded-shard1-data-1 Bound pvc-5d886770-a64e-4199-a9b4-39b525e4a720 8Gi RWO nfs-sc-iap 41m
datadir-ysjeon-mongodb-mongodb-sharded-shard2-data-0 Bound pvc-c5ae1516-3e48-4550-9405-28a6503592fd 8Gi RWO nfs-sc-iap 43m
datadir-ysjeon-mongodb-mongodb-sharded-shard2-data-1 Bound pvc-66b6f243-2e1d-4989-a0e4-88355b71587a 8Gi RWO nfs-sc-iap 41m
$
- MongoDB 접속 및 테스트
✓ Databases(db) hold one or more collections of documents.
✓ MongoDB stores documents in collections. Collections are analogous to tables in relational databases.
$ kubectl get secret -n yoosung-jeon ysjeon-mongodb-mongodb-sharded -o jsonpath="{.data.mongodb-root-password}" | base64 --decode
wLF4Ko6cvG
$ kubectl run -n yoosung-jeon ysjeon-mongodb-mongodb-sharded-client --rm --tty -i --restart='Never' --image docker.io/bitnami/mongodb-sharded:4.4.10-debian-10-r15 --command -- bash
I have no name!@ysjeon-mongodb-mongodb-sharded-client:/$ mongo admin --host ysjeon-mongodb-mongodb-sharded -u root -p
MongoDB shell version v4.4.10
Enter password:
connecting to: mongodb://ysjeon-mongodb-mongodb-sharded:27017/admin?compressors=disabled&gssapiServiceName=mongodb
Implicit session: session { "id" : UUID("b44ce100-668f-4265-bbde-57431087406e") }
MongoDB server version: 4.4.10
mongos> db
admin
mongos> db.user.insertOne({username:"ysjeon", password:"111111"})
{
"acknowledged" : true,
"insertedId" : ObjectId("61820cbe6745c016e88ba770")
}
mongos> show collections
system.users
system.version
user
mongos> exit
bye
I have no name!@ysjeon-mongodb-mongodb-sharded-client:/$
- MongoDB sharding 내용 조회
mongos> sh.status();
--- Sharding Status ---
sharding version: {
"_id" : 1,
"minCompatibleVersion" : 5,
"currentVersion" : 6,
"clusterId" : ObjectId("618226d716b26ae4e23a42f6")
}
shards:
{ "_id" : "ysjeon-mongodb-mongodb-sharded-shard-0", "host" : "ysjeon-mongodb-mongodb-sharded-shard-0/ysjeon-mongodb-mongodb-sharded-shard0-data-0.ysjeon-mongodb-mongodb-sharded-headless.yoosung-jeon.svc.cluster.local:27017,ysjeon-mongodb-mongodb-sharded-shard0-data-1.ysjeon-mongodb-mongodb-sharded-headless.yoosung-jeon.svc.cluster.local:27017", "state" : 1 }
{ "_id" : "ysjeon-mongodb-mongodb-sharded-shard-1", "host" : "ysjeon-mongodb-mongodb-sharded-shard-1/ysjeon-mongodb-mongodb-sharded-shard1-data-0.ysjeon-mongodb-mongodb-sharded-headless.yoosung-jeon.svc.cluster.local:27017,ysjeon-mongodb-mongodb-sharded-shard1-data-1.ysjeon-mongodb-mongodb-sharded-headless.yoosung-jeon.svc.cluster.local:27017", "state" : 1 }
{ "_id" : "ysjeon-mongodb-mongodb-sharded-shard-2", "host" : "ysjeon-mongodb-mongodb-sharded-shard-2/ysjeon-mongodb-mongodb-sharded-shard2-data-0.ysjeon-mongodb-mongodb-sharded-headless.yoosung-jeon.svc.cluster.local:27017,ysjeon-mongodb-mongodb-sharded-shard2-data-1.ysjeon-mongodb-mongodb-sharded-headless.yoosung-jeon.svc.cluster.local:27017", "state" : 1 }
active mongoses:
"4.4.10" : 2
autosplit:
Currently enabled: yes
balancer:
Currently enabled: yes
Currently running: no
Failed balancer rounds in last 5 attempts: 0
Migration Results for the last 24 hours:
682 : Success
databases:
{ "_id" : "config", "primary" : "config", "partitioned" : true }
config.system.sessions
shard key: { "_id" : 1 }
unique: false
balancing: true
chunks:
ysjeon-mongodb-mongodb-sharded-shard-0 342
ysjeon-mongodb-mongodb-sharded-shard-1 341
ysjeon-mongodb-mongodb-sharded-shard-2 341
too many chunks to print, use verbose if you want to force print
mongos>
4. MongoDB Compass
a. Compass ?
- MongoDB Compass is a powerful GUI for querying, aggregating, and analyzing your MongoDB data in a visual environment.
- supported operation system: Windows, macOS, Linux
- https://docs.mongodb.com/compass/current/
b. MacOS용 설치
다운로드: https://downloads.mongodb.com/compass/mongodb-compass-1.28.4-darwin-x64.dmg
설치: mongodb-compass-1.28.4-darwin-x64
c. MongDB 접속

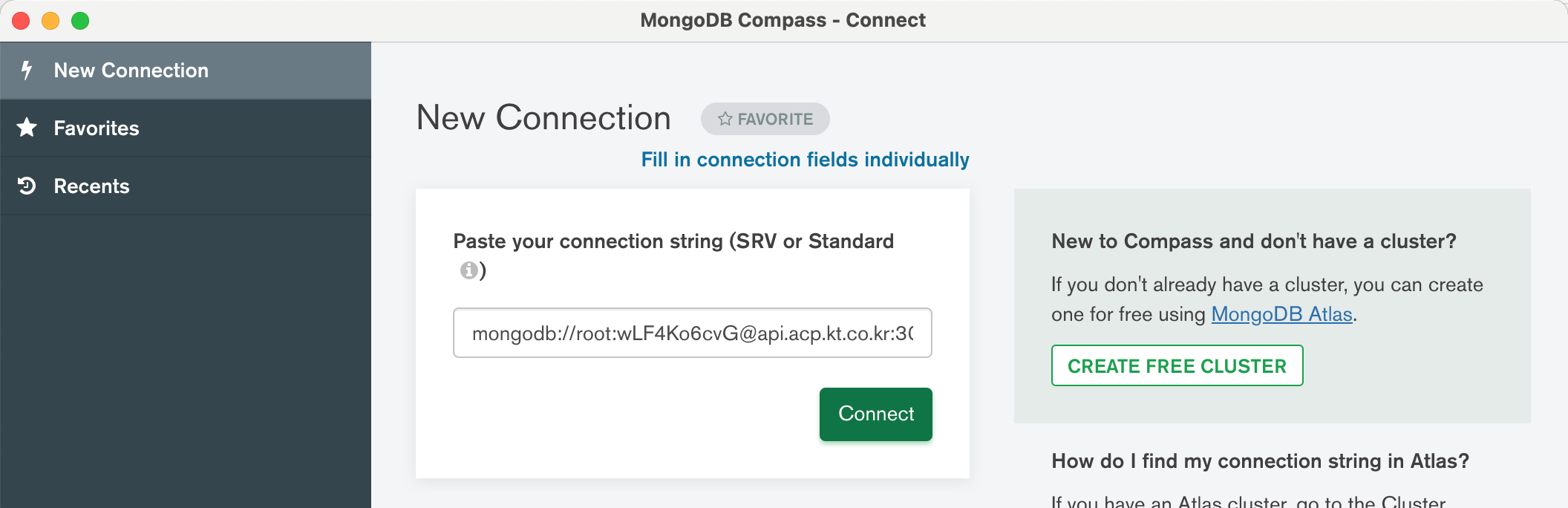

- New Connection
✓ 형식: mongodb://username:password@{kubernetes IP}:{MongoDB NodePort}/admin
✓ ysjeon MongoDB : mongodb://root:wLF4Ko6cvG@api.acp.kt.co.kr:30997/admin
Kubernetes IP: api.acp.kt.co.kr (ACP API Server의 Load balancer IP)

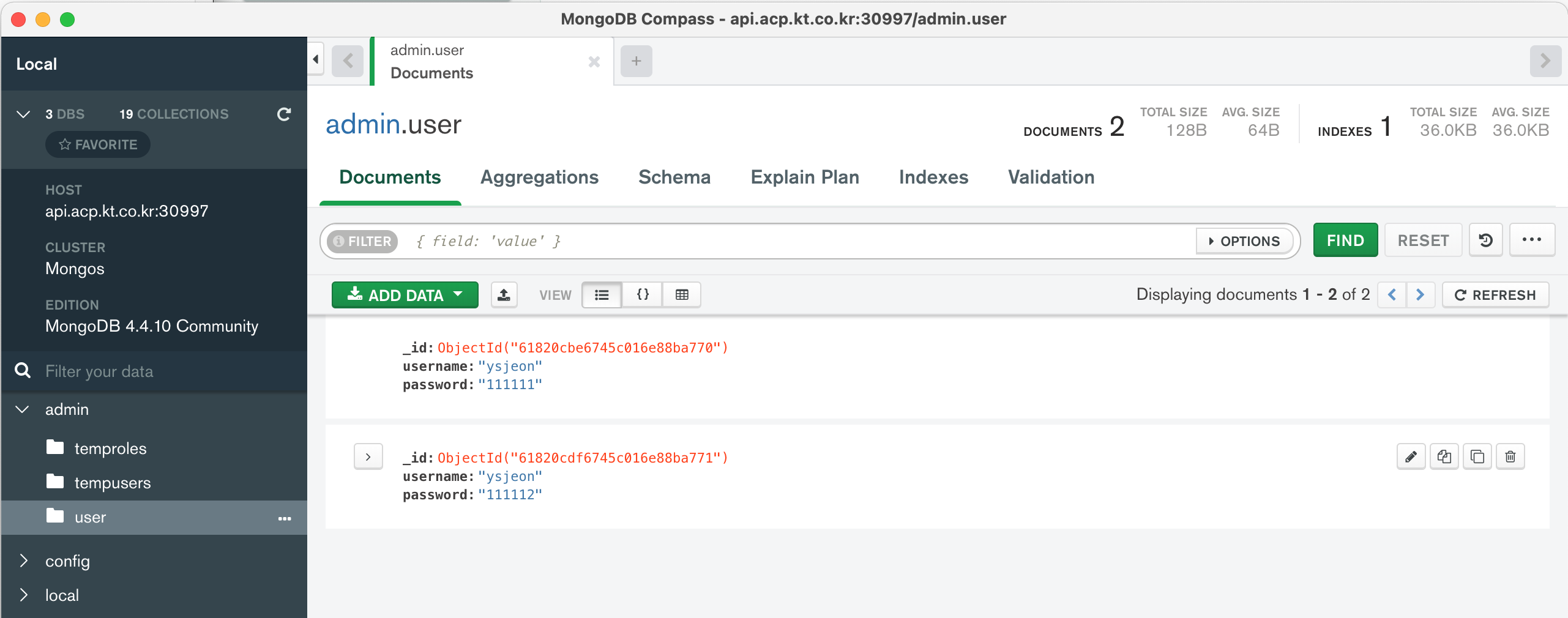

- Collection 조회
