ClusterIP, NodePort, Ingress 개념

2020.04.10



1. ClusterIP

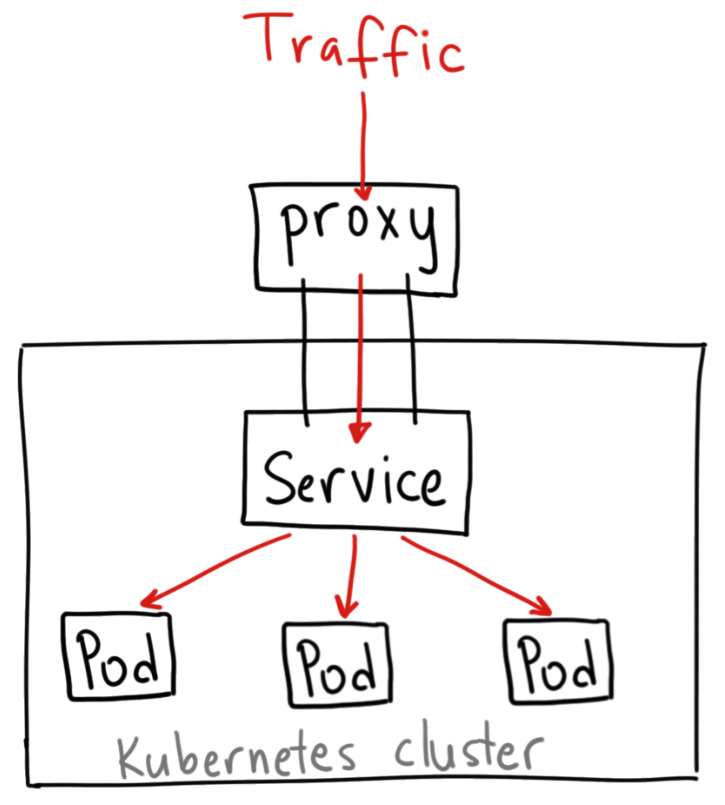

- A ClusterIP service is the default Kubernetes service. It gives you a service inside your cluster that other apps inside your cluster can access. There is no external access.

$ k proxy --port=8080 &
[1] 893
ysjeon71_kubeflow2@cs-6000-devshell-vm-92bccb22-ff7a-491b-99a2-c333678d033d:~/exam-tfserving$ Starting to serve on 127.0.0.1:8080
The service’s proxy URL:
http://kubernetes_master_address/api/v1/namespaces/namespace_name/services/[https:]service_name[:port_name]/proxy
  $ curl -X POST -d @input.json http://localhost:8080/api/v1/namespaces/kubeflow/services/mnist-service:8500/proxy/v1/models/mnist:predict
…
$





2. NodePort

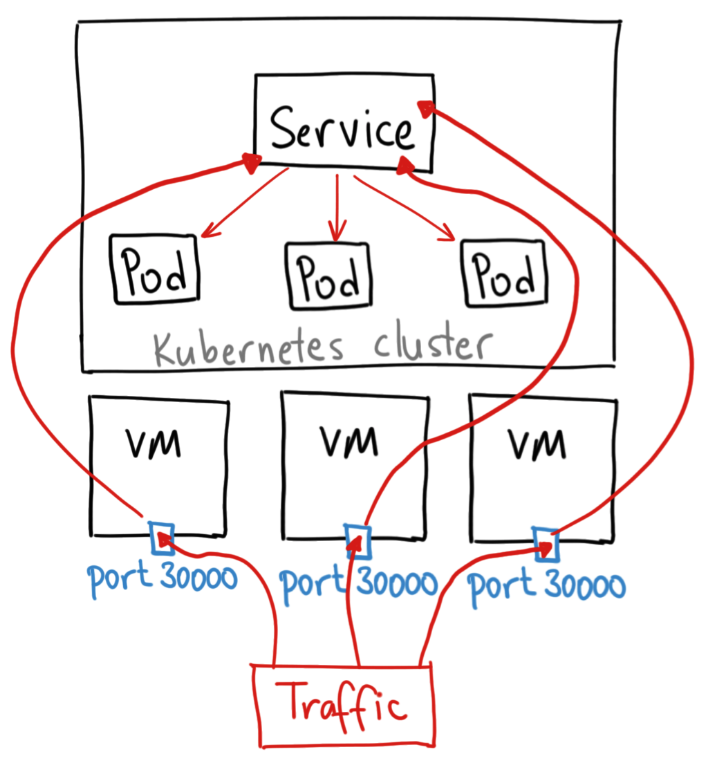

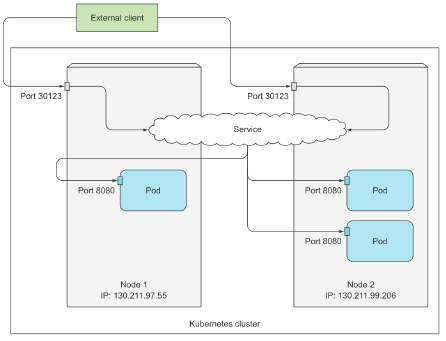

- A NodePort service is the most primitive way to get external traffic directly to your service. NodePort, as the name implies, opens a specific port on all the Nodes (the VMs),  and any traffic that is sent to this port is forwarded to the service.



$ k get svc kubia-nodeport
NAME             TYPE       CLUSTER-IP     EXTERNAL-IP   PORT(S)        AGE
kubia-nodeport   NodePort   10.63.248.71   <none>        80:30123/TCP   2m43s
$ k describe svc kubia-nodeport
…
Type:                     NodePort
IP:                       10.63.248.71
Port:                     <unset>  80/TCP
TargetPort:               8080/TCP
NodePort:                 <unset>  30123/TCP
Endpoints:                10.60.4.10:8080,10.60.4.5:8080,10.60.4.6:8080 + 3 more...
…
$ k get nodes -o wide
NAME                                                  STATUS   ROLES    AGE   VERSION          INTERNAL-IP  EXTERNAL-IP    OS-IMAGE                             KERNEL-VERSION   CONTAINER-RUNTIME
gke-my-kubeflow-my-kubeflow-cpu-pool--5b5549e0-2kfh   Ready    <none>   97m   v1.14.10-gke.27  10.142.0.11  35.227.87.160  Container-Optimized OS from Google   4.14.138+        docker://18.9.7
gke-my-kubeflow-my-kubeflow-cpu-pool--5b5549e0-ntcs   Ready    <none>   31m   v1.14.10-gke.27  10.142.0.15  35.196.119.78  Container-Optimized OS from Google   4.14.138+        docker://18.9.7
$
$ k exec kubia-5dfcbbfcff-9khml -- curl -s 10.142.0.11:30123
This is v1 running in pod kubia-5dfcbbfcff-9mwv8
$
$ gcloud compute firewall-rules create kubia-np-rule --allow=tcp:30123
Creating firewall...⠶Created [https://www.googleapis.com/compute/v1/projects/my-kubeflow-271310/global/firewalls/kubia-np-rule].
Creating firewall...done.
$ gcloud compute firewall-rules list --filter=kubia-np-rule
NAME           NETWORK  DIRECTION  PRIORITY  ALLOW      DENY  DISABLED
kubia-np-rule  default  INGRESS    1000      tcp:30123        False
$ curl 35.227.87.160:30123
This is v1 running in pod kubia-5dfcbbfcff-z5dgt
$





3. Ingress

- 참고: https://blog.naver.com/alice_k106/221502890249

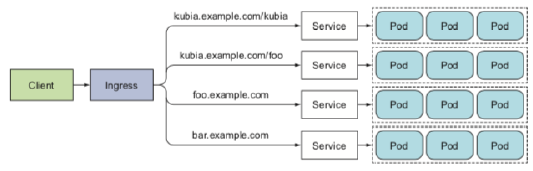

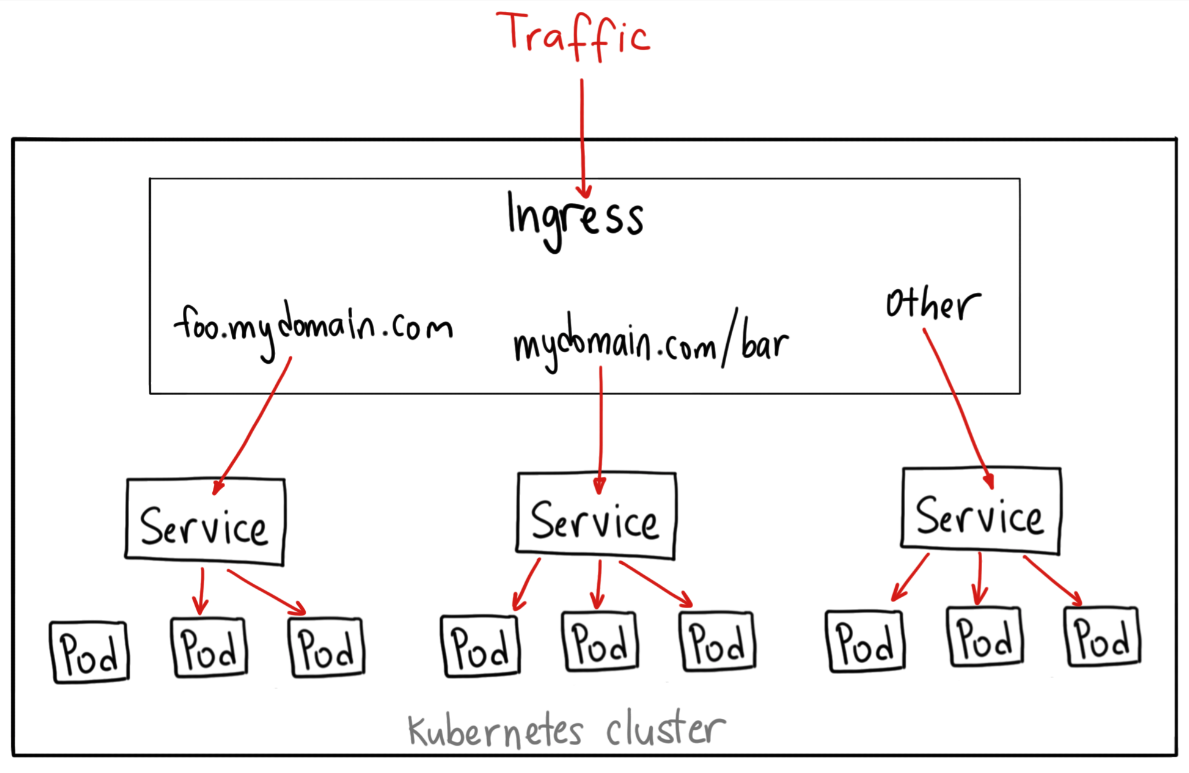

- Unlike all the above examples, Ingress is actually NOT a type of service. Instead, it sits in front of multiple services and act as a “smart router” or entrypoint into your cluster.

   There are many types of Ingress controllers, from the Google Cloud Load Balancer, Nginx, Contour, Istio, and more.

 $ k get svc kubia-nodeport
 NAME             TYPE       CLUSTER-IP     EXTERNAL-IP   PORT(S)        AGE
 kubia-nodeport   NodePort   10.63.248.71   <none>        80:30123/TCP   23m
 $ k get ingress
 NAME    HOSTS               ADDRESS         PORTS   AGE
 kubia   kubia.example.com   35.186.241.29   80      5m3s
 $ k describe ingress kubia
 …
 Rules:
   Host               Path  Backends
   ----               ----  --------
   kubia.example.com
                      /   kubia-nodeport:80 (10.60.4.10:8080,10.60.4.5:8080,10.60.4.6:8080 + 3 more...)
 …
 $ curl -H "Host:kubia.example.com" http://35.186.241.29
 This is v1 running in pod kubia-5dfcbbfcff-z5dgt
 $
