1. 개요
- minikube에 Kubeflow 1.4.1을 설치한다.
- Kubeflow 설치 방식이 버전 1.2까지는 kfctl를 사용하였으나, 1.3부터는 kustomize를 사용한다.
✓ kfctl is a CLI for deploying and managing Kubeflow, Latest release: 1.2.0(21 Nov 2020), https://github.com/kubeflow/kfctl
✓ Kubeflow 1.4.1는 Istio 1.9.6, Knative 0.22.1을 포함하고 있다.
2. 환경
- kubeflow 1.4.1
- minikube 1.17.1
- kubernetes 1.20.11
- macOS 12.1
3. Kubeflow Install
- 참고 문서: https://github.com/kubeflow/manifests
a. Prerequisites
- Kubernetes
Minikube에서 Kubeflow가 설치/실행 될 수 있도록 리소스(CPU/Memory)를 할당하여 kubernetes 1.20.11를 설치한다.
kubeflow 설치에 필요한 default storageclass는 자동으로 구성된다.
yoosungjeon@ysjeon-Dev ~ % minikube start --driver=hyperkit --kubernetes-version=1.20.11 --memory=8g —cpus=4 --profile kf-1.4
😄 [kf-1.4] Darwin 12.1 위의 minikube v1.17.1
✨ 유저 환경 설정 정보에 기반하여 hyperkit 드라이버를 사용하는 중
👍 kf-1.4 클러스터의 kf-1.4 컨트롤 플레인 노드를 시작하는 중
🔥 hyperkit VM (CPUs=4, Memory=8192MB, Disk=20000MB) 를 생성하는 중 ...
🐳 쿠버네티스 v1.20.11 을 Docker 20.10.2 런타임으로 설치하는 중
▪ Generating certificates and keys ...
▪ Booting up control plane ...
▪ Configuring RBAC rules ...
🔎 Verifying Kubernetes components...
🌟 Enabled addons: storage-provisioner, default-storageclass
🏄 Done! kubectl is now configured to use "kf-1.4" cluster and "default" namespace by default
yoosungjeon@ysjeon-Dev ~ % minikube addons list -p kf-1.4
|-----------------------------|---------|--------------|
| ADDON NAME | PROFILE | STATUS |
|-----------------------------|---------|--------------|
| ambassador | kf-1.4 | disabled |
| csi-hostpath-driver | kf-1.4 | disabled |
| dashboard | kf-1.4 | disabled |
| default-storageclass | kf-1.4 | enabled ✅ |
...
💡 To see addons list for other profiles use: `minikube addons -p name list`
(base) yoosungjeon@ysjeon-Dev ~ % minikube profile list
|---------|-----------|---------|---------------|------|----------|---------|-------|
| Profile | VM Driver | Runtime | IP | Port | Version | Status | Nodes |
|---------|-----------|---------|---------------|------|----------|---------|-------|
| kf-1.4 | hyperkit | docker | 192.168.64.35 | 8443 | v1.20.11 | Running | 1 |
|---------|-----------|---------|---------------|------|----------|---------|-------|
yoosungjeon@ysjeon-Dev ~ %
- kubectl
✓ 본 문서에서는 맥에 설치되어 있는 kubectl를 사용하였다.
✓ 신규로 설치하고자 할 경우 'https://kubernetes.io/ko/docs/tasks/tools/install-kubectl-macos/'를 참조해라.
yoosungjeon@ysjeon-Dev ~ % k version --short
Client Version: v1.20.4
Server Version: v1.20.11
yoosungjeon@ysjeon-Dev ~ %
- Kustomize
✓ Kustomize는 kustomization 파일을 통해 Kubernetes 오브젝트를 사용자가 원하는 대로 변경하는(customize) 툴이다.
✓ 본 문서에서는 맥에 설치되어 있는 kustomize (v4.0.5)를 사용하였다.
✓ Kubeflow 문서에서는 kustomize 4.x 최신 버전과는 호환되지 않으며 3.2.0 사용을 권고하고 있다.
✓ 신규로 설치하고자 할 경우 'https://github.com/kubernetes-sigs/kustomize/releases/tag/v3.2.0'를 이용해라.
b. Kubeflow 설치
- Kubeflow를 설치하는 방법으로는 단일 명령어 설치와 개별 컴포넌트 설치가 있다.
- github에서 Kubeflow Manifests 최신 소스를 복제한다.
yoosungjeon@ysjeon-Dev ~ % git clone https://github.com/kubeflow/manifests.git
Cloning into 'manifests'...
remote: Enumerating objects: 24459, done.
remote: Counting objects: 100% (14/14), done.
remote: Compressing objects: 100% (13/13), done.
remote: Total 24459 (delta 4), reused 4 (delta 1), pack-reused 24445
Receiving objects: 100% (24459/24459), 41.43 MiB | 17.53 MiB/s, done.
Resolving deltas: 100% (14561/14561), done.
Checking out files: 100% (7076/7076), done.
yoosungjeon@ysjeon-Dev ~ % cd manifests
yoosungjeon@ysjeon-Dev manifests %
- Kubeflow 1.4.1를 단일 명령어로 설치한다.
"while ! kustomize build example | kubectl apply -f -; do echo "Retrying to apply resources"; sleep 10; done"
yoosungjeon@ysjeon-Dev manifests % while ! kustomize build example | kubectl apply -f -; do echo "Retrying to apply resources"; sleep 10; done
2021/12/29 17:05:37 well-defined vars that were never replaced: kfp-app-version,kfp-app-name
namespace/auth created
namespace/cert-manager created
namespace/istio-system created
namespace/knative-eventing created
namespace/knative-serving created
namespace/kubeflow created
customresourcedefinition.apiextensions.k8s.io/apiserversources.sources.knative.dev created
...
validatingwebhookconfiguration.admissionregistration.k8s.io/trainedmodel.serving.kubeflow.org configured
yoosungjeon@ysjeon-Dev manifests %kubeflow-1.4.1-install.log
0.08MB
- Kubeflow의 Pod들이 정상적으로 기동 되었는지 확인한다.
% k get pod -A | egrep 'NAME|^auth|^cert-manager|^istio-system|^knative-|^kubeflow'
NAMESPACE NAME READY STATUS RESTARTS AGE
auth dex-5ddf47d88d-mdd4f 1/1 Running 1 17h
cert-manager cert-manager-7dd5854bb4-76zmc 1/1 Running 0 17h
cert-manager cert-manager-cainjector-64c949654c-2zv7h 1/1 Running 2 17h
cert-manager cert-manager-webhook-6bdffc7c9d-gt8zg 1/1 Running 2 17h
istio-system authservice-0 1/1 Running 0 17h
istio-system cluster-local-gateway-7bf6b98855-vg9cb 1/1 Running 0 17h
istio-system istio-ingressgateway-78bc678876-rc59j 1/1 Running 0 17h
istio-system istiod-755f4cc457-4xh8s 1/1 Running 0 17h
knative-eventing eventing-controller-64d97555b-44lnz 1/1 Running 0 17h
knative-eventing eventing-webhook-5c5b8d5c6d-h4c65 1/1 Running 1 17h
knative-eventing imc-controller-688df5bdb4-k6942 1/1 Running 0 17h
knative-eventing imc-dispatcher-5dbb47f555-4pc7l 1/1 Running 11 17h
knative-eventing mt-broker-controller-856784c8ff-z92m7 1/1 Running 0 17h
knative-eventing mt-broker-filter-68fcfcc6c8-r7qvh 1/1 Running 0 17h
knative-eventing mt-broker-ingress-bd54bc995-pspjv 1/1 Running 1 17h
knative-serving activator-546897c9dd-plpts 2/2 Running 1 17h
knative-serving autoscaler-7ffbf6d595-dz8g4 2/2 Running 1 17h
knative-serving controller-5894998d7b-5nq86 2/2 Running 1 17h
knative-serving istio-webhook-578b6b7654-rw7fv 2/2 Running 1 17h
knative-serving networking-istio-6b88f745c-h64x6 2/2 Running 1 17h
knative-serving webhook-c59cc5b48-pzrzm 2/2 Running 1 17h
kubeflow-user-example-com ml-pipeline-ui-artifact-5dd95d555b-mdjjm 2/2 Running 0 17h
kubeflow-user-example-com ml-pipeline-visualizationserver-6b44c6759f-rp6w5 2/2 Running 0 17h
kubeflow admission-webhook-deployment-667bd68d94-mw869 1/1 Running 0 17h
kubeflow cache-deployer-deployment-79fdf9c5c9-6l45w 2/2 Running 1 17h
kubeflow cache-server-6566dc7dbf-bv7ft 2/2 Running 0 17h
kubeflow centraldashboard-7d496c59bb-6h2xq 1/1 Running 2 17h
kubeflow jupyter-web-app-deployment-84c459d4cd-mfdlq 1/1 Running 0 17h
kubeflow katib-controller-68c47fbf8b-vstz6 1/1 Running 0 17h
kubeflow katib-db-manager-6c76bdc855-4q5s4 1/1 Running 4 17h
kubeflow katib-mysql-6dcb447c6f-ttspd 1/1 Running 3 17h
kubeflow katib-ui-64bb96d5bf-mc5r9 1/1 Running 0 17h
kubeflow kfserving-controller-manager-0 2/2 Running 0 17h
kubeflow kfserving-models-web-app-5d6cd6b5dd-srvjs 2/2 Running 0 17h
kubeflow kubeflow-pipelines-profile-controller-69596b78cc-rmr5w 1/1 Running 0 17h
kubeflow metacontroller-0 1/1 Running 0 17h
kubeflow metadata-envoy-deployment-5b4856dd5-hrd6v 1/1 Running 0 17h
kubeflow metadata-grpc-deployment-748f868f64-9dq98 2/2 Running 3 17h
kubeflow metadata-writer-548bd879bb-dlqvn 2/2 Running 2 17h
kubeflow minio-5b65df66c9-5dmfc 2/2 Running 0 17h
kubeflow ml-pipeline-84964dcc8-5nz89 2/2 Running 11 17h
kubeflow ml-pipeline-persistenceagent-d6bdc77bd-pcht4 2/2 Running 1 17h
kubeflow ml-pipeline-scheduledworkflow-5db54d75c5-qlpcx 2/2 Running 0 17h
kubeflow ml-pipeline-ui-5447cb9556-gqh96 2/2 Running 10 17h
kubeflow ml-pipeline-viewer-crd-68fb5f4d58-zz9nk 2/2 Running 1 17h
kubeflow ml-pipeline-visualizationserver-cf88b98f7-gx2bh 2/2 Running 10 17h
kubeflow mpi-operator-5c55d6cb8f-v6r7h 1/1 Running 4 17h
kubeflow mysql-f7b9b7dd4-rgbcv 2/2 Running 0 17h
kubeflow notebook-controller-deployment-bb577f6bc-87kpk 1/1 Running 1 17h
kubeflow profiles-deployment-866d7485fc-7mnnr 2/2 Running 1 17h
kubeflow tensorboard-controller-controller-manager-775777c4c5-tcgr8 3/3 Running 2 17h
kubeflow tensorboards-web-app-deployment-6ff79b7f44-c54dw 1/1 Running 0 17h
kubeflow training-operator-795c5cb864-f9jzr 1/1 Running 0 17h
kubeflow volumes-web-app-deployment-8589d664cc-shd6v 1/1 Running 0 17h
kubeflow workflow-controller-76dd87cd85-s7j9w 2/2 Running 2 17h
%
4. Kubeflow Central Dashboard 접속
- Dashboard에 접속하기 위한 URL 정보를 조회한다.
Kubeflow Central Dashboard는 Istio를 통해서 제공되기 때문에 istio-ingressgateway 서비스의 NodePort 정보를 알아야 한다.
yoosungjeon@ysjeon-Dev ~ % k get svc istio-ingressgateway -n istio-system
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
istio-ingressgateway NodePort 10.104.18.186 <none> 15021:30518/TCP,80:32068/TCP,443:32591/TCP,31400:30009/TCP,15443:32260/TCP 18h
yoosungjeon@ysjeon-Dev ~ % minikube service list -p kf-1.4
|------------------|---------------------------------|-------------------|----------------------------|
| NAMESPACE | NAME | TARGET PORT | URL |
|------------------|---------------------------------|-------------------|----------------------------|
...
| istio-system | cluster-local-gateway | No node port | |
| istio-system | istio-ingressgateway | status-port/15021 | http://192.168.64.35:30518 |
| | | http2/80 | http://192.168.64.35:32068 |
| | | https/443 | http://192.168.64.35:32591 |
| | | tcp/31400 | http://192.168.64.35:30009 |
| | | tls/15443 | http://192.168.64.35:32260 |
| istio-system | istiod | No node port | |
...
yoosungjeon@ysjeon-Dev ~ %

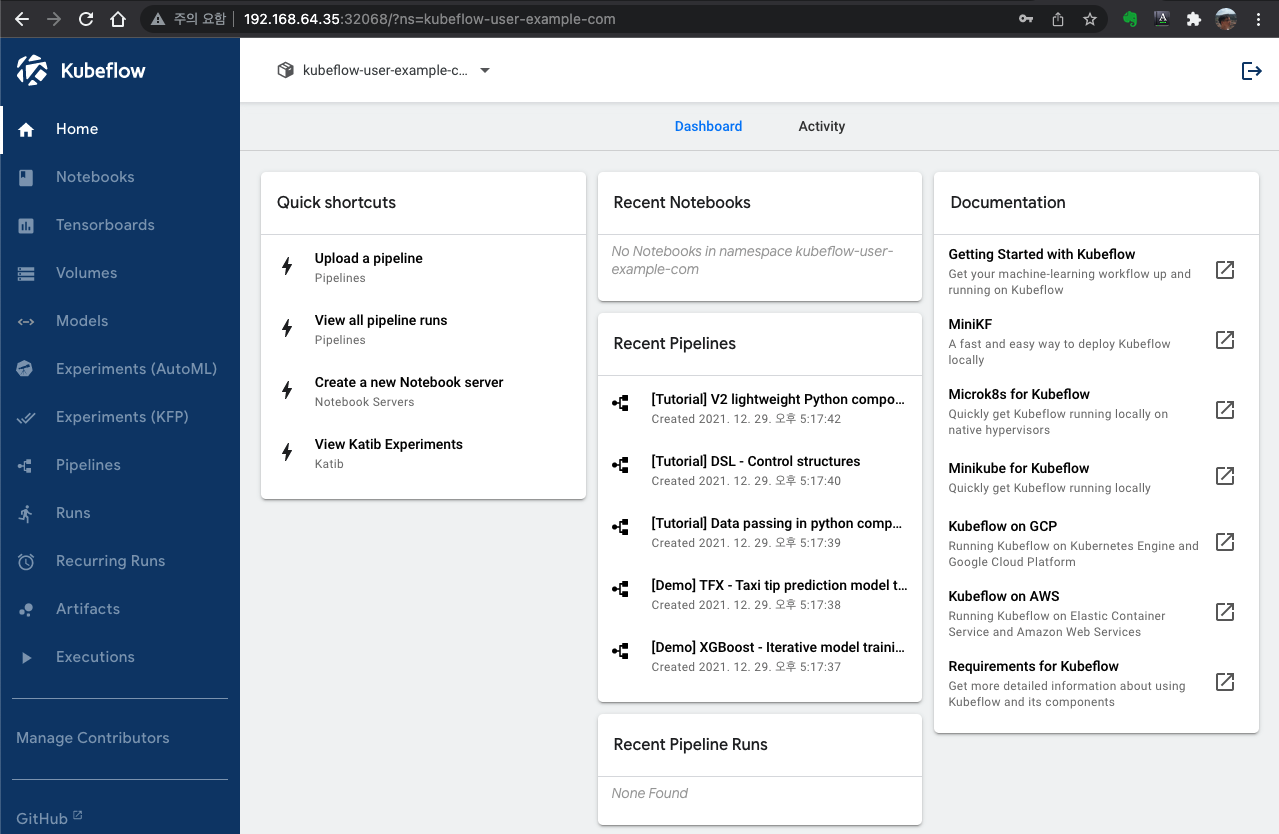

- Dashboard에 접속한다.
URL: http://192.168.64.35:32068
Email / Password: user@example.com / 12341234
암호를 변경하고자 할 경우 'https://github.com/kubeflow/manifests#change-default-user-password'를 참조해라
